Friday, February 8, 2013

Shadow - Solar Studies for Sale

Shadow Studies for Sale.

You provide the property and we provide the Study.

We are located in Calgary but you can be located anywhere in the world.




Tuesday, February 16, 2010

RAC 2010 The New Curtain System By Lines


Here's the new way to create a 'Curtain System by Lines'.

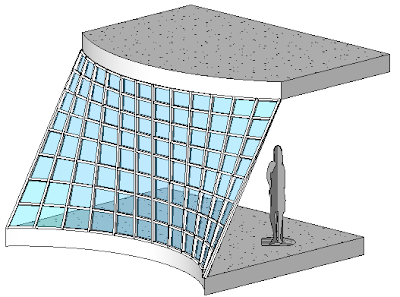

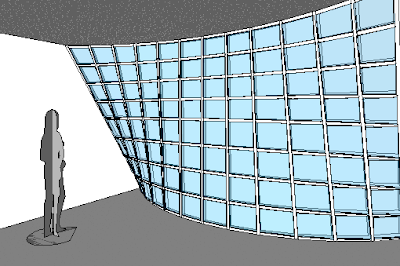

In previous versions of REVIT there was a simple straight forward way to create the curtain system as illustrated above by using a tool called 'Curtain System By Lines'.
The first thing we noticed in RAC 2010 is that tool is gone without at trace. Not only is it gone but if you go to the help menu to the 'Where is my Command' tool and search for it you will discover that it does NOT tell you where that command went to. It has been erased from the face of REVIT without any direction as to the 'NEW' way to do it . . . . . . that is until now of course : )
1. Create a new In-Place Mass Form by picking existing geometry or linework.
2. Turn the linework into a 'Form' and finish the mass.
3. Use the Curtain System byFace tool.
4. Add the Curtain Grids.
5. Add the Mullions.
6. Bob's your Uncle !
See the CADclip below for a complete demonstration.

Wednesday, May 16, 2007

Toronto Shadow Study Information

City of Toronto Shadow and Sun Study Information

The link above will provide you with information on the requirements of Shady / Sun Studies in the City of Toronto.

Description
When Required
Rationale
Required Contents
The Model
Test Times
Format of the Study

Friday, April 27, 2007

Shadow Study In Belize

Here's a couple still shots of a shadow study done for a Sea Side property in Belize.
Video animation links are posted just below. . . .


Below are 3 animated shadow study videos created for this property(note the date and time)
Topo View Shadow Study
(click the links above to play the annimation or right click and 'Save Target As..' to download)


Please Email me to inquire about doing a shadow study for your property.

Tuesday, April 24, 2007

Shadow Study required for permit in Calgary, Canada


Here's a couple still shots of a shadow study done on a sloping grade in Calgary, Canada.
The study was requied for building development permit.
Full video animations were also completed over 4 seasons.


Here's the animation video I made. (1 Min.) (note the date and time)
Calgary Alberta Canada Shadow Study
(click the link above to play the annimation or right click and 'Save Target As..' to download)

Please Email me to inquire about doing a shadow study for your property.

Shadow Study situated in Melbourn Australia


A few still shots of a shadow Study situalted in Melbourn Australia.

Here's the animation I made. (30 sec) (note the date and time)
Melbourne Australia Shadow Study
(click the link above to play the annimation or right click and 'Save Target As..' to download)

Please Email me to inquire about doing a shadow study for your property.
